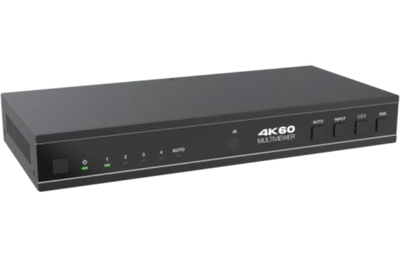

4K60 4x1 Multiviewer Seamless UHD Video Switcher

---

This 4K60 4x1 Multiviewer Seamless UHD Video Switcher was developed for the purpose of supporting higher output resolution (4K@60) for multiple sources on a single screen. It can combine up to four video signals onto a single UHD or HD displayer. The user can manage each input, and create combinations of the four inputs on a single display This device supports full range of input video resolutions up to 4K@60 and audio RCA /Optical de-embedding supported for external audio distribution systems. This device can be controlled via front panel buttons, IR remote, OSD menu navigation, Controller software, RS-232 commands.

• HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
• Support 18Gbps video bandwidth
• Input and output resolutions support up to 4K@60Hz
• Support LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel
• Seamless switching between input channels and combined multiple images
• Seamless switching in single screen display mode
• Fast switching in multiview display mode
• Audio de-embedding via analog and optical fiber audio ports
• Support volume control and independent audio selection
• Support OSD navigation for advanced setting
• Support OSD text editing by serial command
• Support Black Screen on each HDMI input by serial command
• EDID management
