4X4 HDBaseT Matrix

---

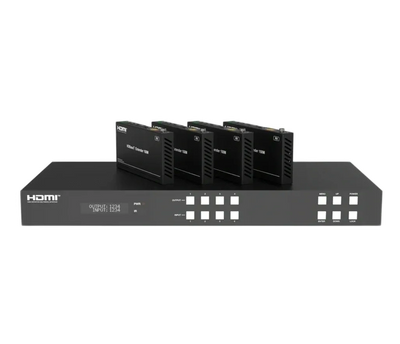

IMOWARE HDB440K-4K-150 is a controllable Matrix and can switch 4 HDMI sources to 8 displays. The resolution is up to 4K2K@60Hz 4:4:4, 18Gbps, Pixel Clock 600MHz and HDCP 2.2. Each HDMI output supports 4K2K to 1080P downscale independently. The IR signal follows HDMI video channel at the HDBaseT Receiver end. The product provides an intuitive set of front panels with OLED screen and supports control via front panel buttons, IR remote, RS-232, LAN, and Web GUI.

• Support one-input-key fast switching at IR remote control and panel button
• Support one-command multiple video switching
• Support telnet port enable/disable
• Support audio de-embedded to analog and coaxial
• Support firmware upgrade for add-on feature
• Support Cat 6 Cable up to 120m at 4K2K60, 150m at 1080P60
• Support HDMI Cable up to 5m at 4K60, 10m at 4K40, 15m at 1080P60
• Support POC Function for all HDBaseT port

Our team provides installation and support services to ensure your AV equipment is set up properly and runs smoothly. Contact us to learn more.
