18Gbps HDMI to USB-C Converter

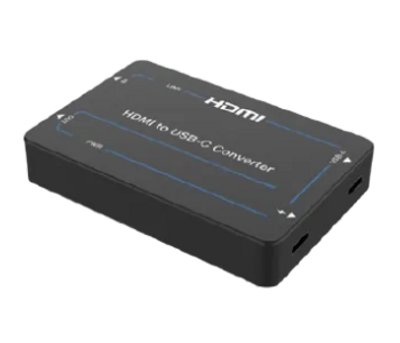

Black HDMI to USB-C converter device with labeled ports.

HCH122-4K

This 18Gbps HDMI-USB-C Converter coverts an HDMI input signal to a USB-C video output for a USB-C display. This allows to use the monitor with a single USB-C cable, simplifying connectivity and reducing cable clutter. The converter has HDMI loop out to splitting the signal from one HDMI input to multiple outputs.

Features

  • Compliant with USB-C (DP Alt-mode)
  • DP 1.2 for 5.4Gbps video bandwidth
  • Compliant with HDMI 2.0, HDCP 2.2
  • High resolutions up to 3840x2160@60Hz YUV 4:4:4 8 bit HDR
  • HDMI loop out 4K60 4:4:4
  • Dolby Audio Digital 7.1
  • One USB-C cable to power the USB-C display and 4K60Hz video tranmission
  • ±4kV (Contact discharge), ±8kV (Air-gap discharge)
  • Plug and Play, no software required

Installation and Support

Our team provides installation and support services to ensure your AV equipment is set up properly and runs smoothly. Contact us to learn more.

Specification
Black HDMI to USB-C converter device with labeled ports.

HCH122-4K

HCH122-4K Operation View
